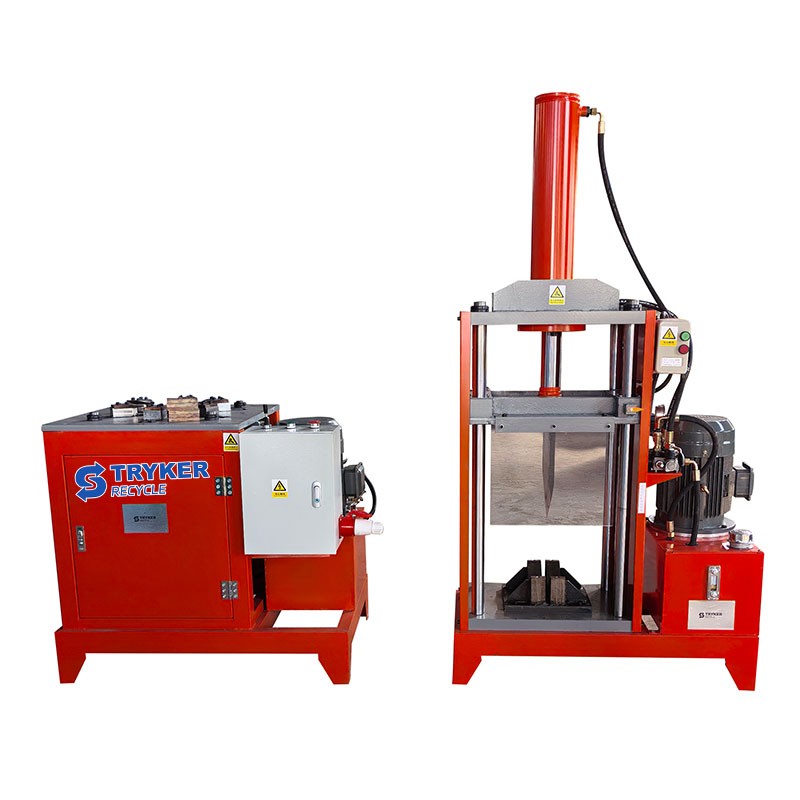

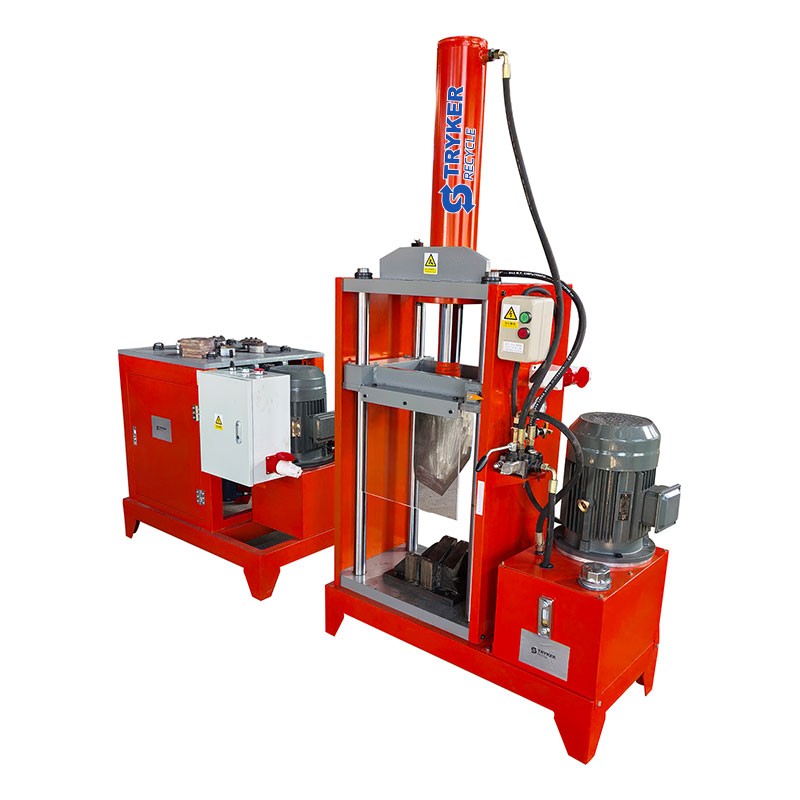

MR-TS Electric Motor recycling Machine is an equipment designed to recover copper present in the motor stator. It has 2 separately parts to finish the whole cutting and recycling. One part is the cutting part to cut all motor stators into two parts. Another part is copper pulling parts. It can efficiently dismantle scrap motor stators with a diameter ranging from 8--30 cm.
Application
Process all kinds of motor, such as household appliances, washing machines, industrial motor stators, etc.
Our Customers: Metal Recycling Center, Car Recyclers, etc.
Design and Manufacturing:
100% separated copper, low energy consumption, high efficiency, high quality accessories, durable, dust removal system, reliable hydraulic system.
How Recycling Motors Works
-Wrecking the aluminium or cast iron motor housing and removal of the anchor/rotor.
-Splitting the stator or transformer block in 2 parts.
-Separating iron and copper of the stator by means of a hydraulic operation.
Three types of electric motor recycling systems to choose:
Single platform equipment – This system has one motor set to either crack the outer cast or extract the copper.
Double platform equipment – This system has two motors with a different platform for copper extraction and cast cracking.
Triple platform equipment – This system has three motors, so it can break the cast, split the strators, and extract the precious metals all on one machine.
Service Support:
● 1 year warranty
● High ROI
● Semi-automatic & easy operate
● Factory stock
● Provide trial video
● Installation and operation training
● Life-long technical support
Technical Specifications
Cutting Part
Power: 4kw
Voltage: 220/380V
Weight: 300kg
Mea: 1000*470*1860mm
Range: 0-450mm
Pulling Part
Power: 4kw
Voltage: 380V
Weight: 800kg
Mea: 1000*700*940mm
Range: 80-300mm
