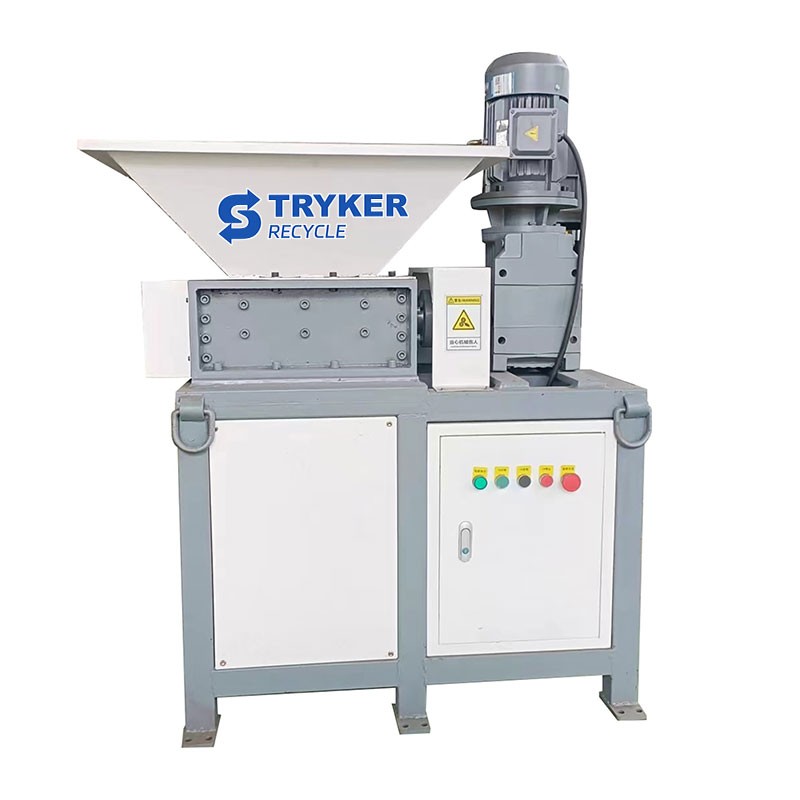

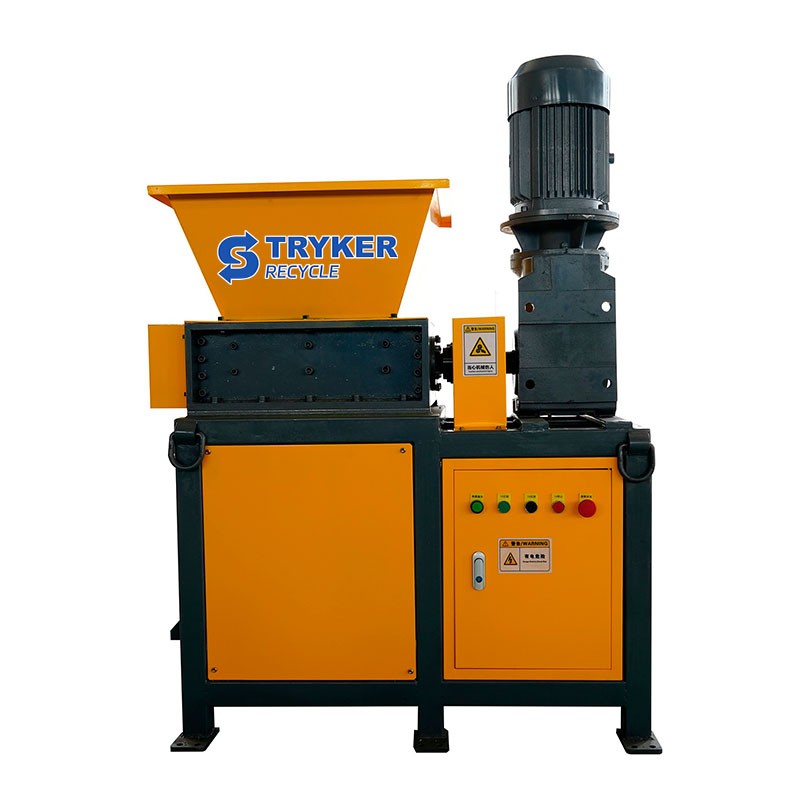

ST-EB300 Double shaft shredder

Small double-shaft shredder is a mechanical device used for material crushing and processing. It is widely used in the coarse or medium crushing of solid waste such as scrap metal, plastic,rubber, wood, electronic waste, etc. Its core feature is the use of a double-shaft design, which breaks down materials into smaller particles through the principles of shearing, tearing and squeezing,and is suitable for small and medium-sized or laboratory use.

Core structure
1. Dual-axis system
Two parallel main shafts with staggered blades (knife rollers) on the surface, which generate shear force through counter-rotation. The blades are mostly made of high-hardness alloys
(such as CrMo alloy, SKD-11), which are wear-resistant and impact-resistant.
2. Drive system
Power is provided by a reduction motor, gearbox or chain drive to ensure synchronous rotation of the two shafts.
3. Box and feed port
The feed port is designed to be wide and can accommodate irregular materials.
4. Control system
Equipped with overload protection, emergency stop function, and reverse function.

Aadvantages
1. Wide range of applications
Can process a variety of materials such as metal cans, tires, plastic barrels, cables, waste paper, etc.
2. Flexible and efficient
Small size, suitable for sites with limited space (such as recycling stations, laboratories). Low energy consumption, the processing capacity is usually 100-2000 kg/h (depending on the model.
3. Easy maintenance
The blades can be disassembled and replaced to meet different crushing needs.
4. Safe and reliable
The sealing design reduces noise and dust, and the overload protection avoids equipment damage.

After-sales Support
1. Provision of test videos before delivery
2. Video-guided installation
3. Free replacement parts
4. One-year warranty
5. Lifetime technical support
