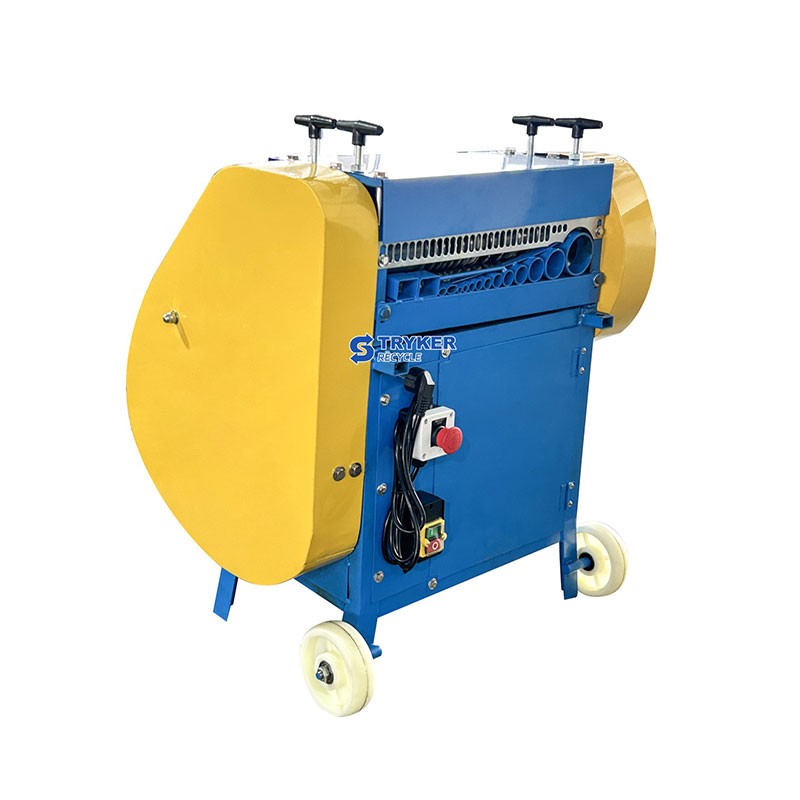

ST-KOF Wire stripping machine

Product Item : ST-KOF Wire Stripper
Category： Wire stripping machine
Wire Range: 1-60mm
Power: 2.2KW
Net Weight: 115KG
Dimensions: 760*640*920mm
INQUIRY EMAIL

Machine Introduction.
Professional STRYKER used wire cutting and stripping machine ST-KOF is mainly used to strip copper core and plastic sheath Wire diameter range of this copper stripping machine is 1-60mm, also has fast processing speed and high stripping efficiency and is widely used in scrapyard, cable factories, and all types of recycling businesses. This cheap cable stripper machine can strip all kinds of scrap wire or cable. very useful for scrap recycling

*Specification.
Suitable for wires ranging from 1 to 60mm * either solid or stranded
Eleven (11)standard channels for round wires
Two (2)dedicated flat wires.
Two (2) Slitting channels for pressing wires
Powerful 2.2KW motor runs off any wall outlet (110-120VAC)
Stripping speed: 30m per minute.
Adjustable Tension works with different insulation, soft or hard
Double-Cut Mechanism gets the copper out in just one pass.
Dimensions: 760x64 x92mm

Model	ST-KOF
Processing Range	1 to 60mm
Dimensions	760640920mm
Gross Weight	135KG
Net Weight	115KG
Power	2.2KW
Output	600-2800KG/DAY
Voltage	Customized
Warranty	12 months

Machine Working Process
Step 1: Turn on machine and scrap wires enter slot.
Step 2: Wire passes blade processing area,
Step 3: Wires has been processed, use your hand to remove plastic cover and get copper wire
Application.
1).Daily output is 600-2800 kg per day;
2).Has dual blades, easy to cut and strip cables
Single copper wires or hard wires can be rolled or stripped with blades to finish the process, and other wires(soft wires) can be easily stripped.
3). Appearance is very concise and beautiful. What's more, machine color can be customized according to customer's order.
4). ST-KOF is easy to handle and control. Furthermore, it's convenient to carry.

Operating(instruction)Manual.
1. Push Switch up to turn Motor ON. Check whether machine works well. Make sure there are no people on the output side of machine.
Comparing cables wires diameters with feeding slots on machine, feeding cables/wires one piece. Before feeding cables/wires, please cut off cables/wires' head to avoid gaps caused to blades
2. On the output side, if cuts on cables/wires are too deep, please check below points Please adjust handles on input side, screw down or lose them. (M12 handles).
Check whether cables/wires on right position as you are feeding them.
Make sure blades are sharp if not, polish them with oil stone
3. On output side, if see plastic ( PVC ) has been stripped, but copper wires can not be disgorged, please check below 4 points. Check whether springs are loose. lf yes, screw down to make them tighten. The diameter of cables/wires are too small.
Please adjust space between two axes to 0 3-0.6mm.
If cables/wires you want to strip are hot, you also can not get copper wires stripped out.
4. lf cables/wires were blocked in axes, please check below points
check if Chains are loose.
②lf springs on the press wheels are too tight, lose them There is too much oil on cables/wires, Please wipe it (make sure machine is turned off before wiping.)
Make sure wires' diameter are similar with feeding slots, large cables/wires in large feeding holes, small cables/wires in small feeding slots, flat cables/wires in flat feeding slots

Different View Pictures:

Common Problems.

1.Can be grinding the blades?
It can not be ground The best way you can order more as spare parts.
2. How can | know the blades are broken?
First, once the blades are broken, then it will not process the wires correctly. Second, we suggest you can check the blades regularly.
3.1 set machine KOF can ship by sea?

One set used wire cutting and stripping machine KOF can not be shipped by sea. We ship the machine by sea depending on machine weight 250KG at least, so we recommend your buy more shipping by sea
