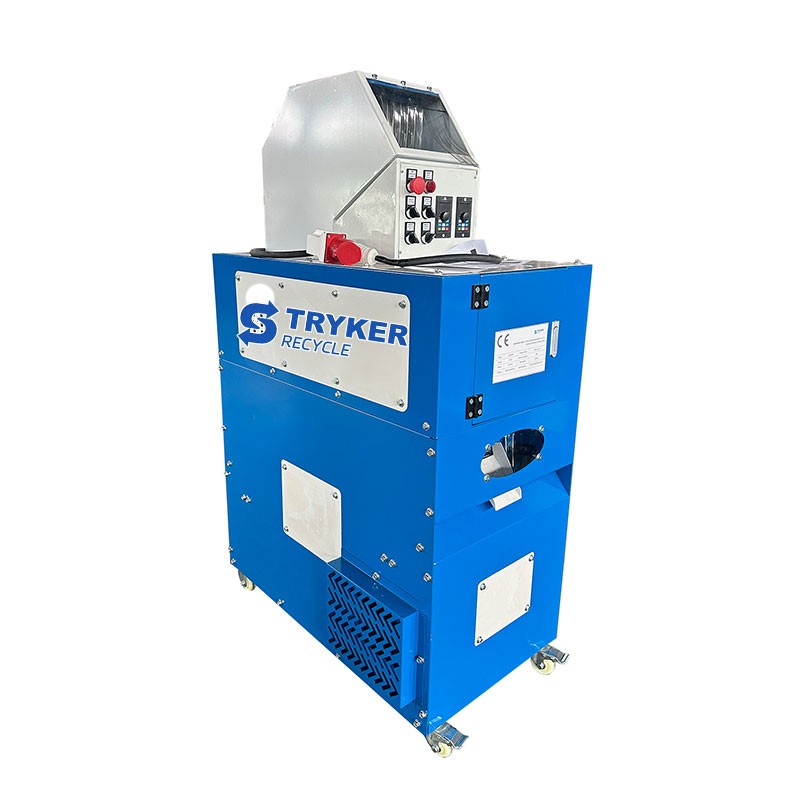

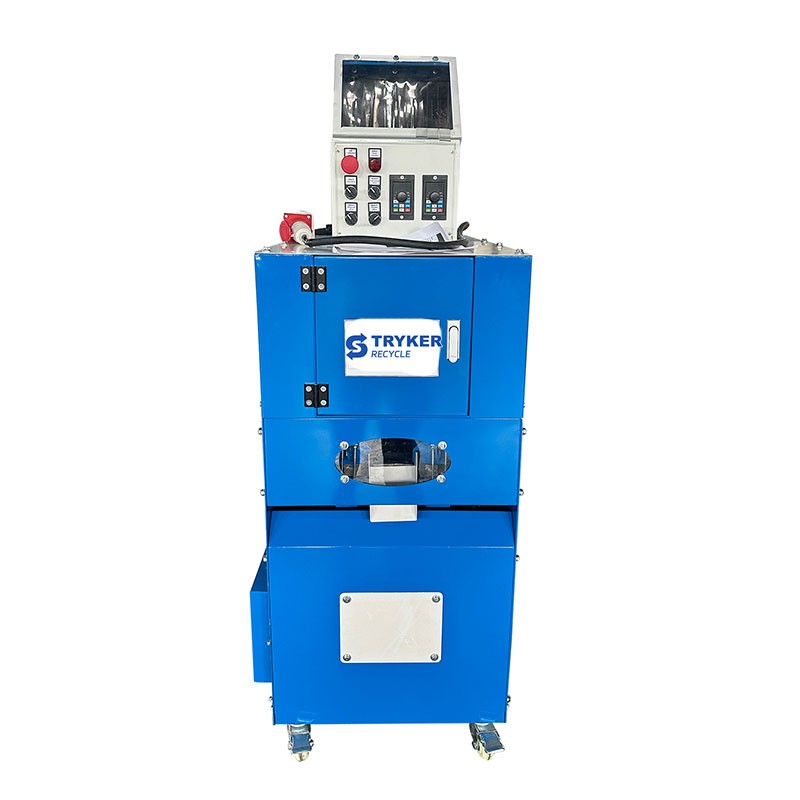

ST-01 cable granulator



With a mini cable granulator, you can cost-effectively separate precious metals like aluminum and copper from insulation materials – an impossible task without the right equipment to handle it!

The ST-01 is a compact copper granulator specifically designed to recover copper from cables while consuming minimal energy. It can separate two different densities of wire with 99.9% accuracy and can process more scrap wire and wire at a higher rate than almost any other equipment, also featuring a self-cleaning mode to reduce maintenance and remove dust.
The ST-01 is a professional helper for homes, small factories and small scrap plants, processing up to  110 lb of scrap wire and wire per hour.

The types of scrap it can process include:
● Wire harnesses
● Automotive wires
● Industrial cables
● Household wires
● Romex wires
● Cloth wires

● And more

Service Support:
● 1-year warranty provided
● Lifetime after-sales
● Low maintenance
● Machine testing provided
● Installation and operation training.

ST-01 220-240v 1ph/380-480v 3ph Granulator:

Model ST-01
ST-01
Range
0.1~30 mm
0~1.19 inches
Weight
320 kg
705 lb
Dimensions
1000*600*1664mm
39*23.6*65.5 inches
Power
4.58 kw
7 hp
Processing Capacity
50 kg/h
110 lb/h

Includes:
- Granulation crusher
- Air flowing vibration separator
- Dust Collector
- Air system (air blower + air suction)
- Electric carbinet
- 1 Set blades
- Crusher sieves
- Separators sieves
- 1 SET Tool Box

Consider optional accessories:
We recommend adding accessories
-Pre-crushing device
-Small vibrating table
This accessory allows you to process a large amount of fine and thick wires at the same time efficiently and accurately.


How does the ST-01 Granulator work?

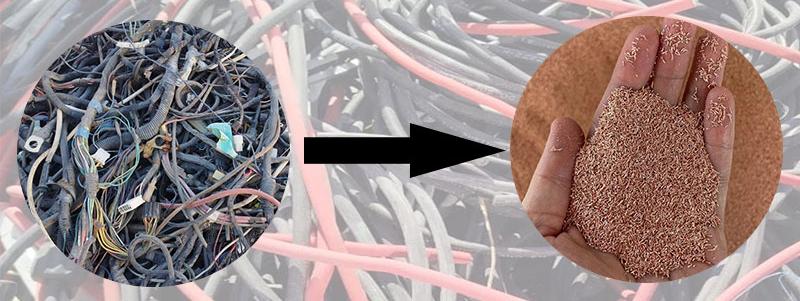

The 01 separates copper wire from the plastic coating. The cables and wires are then cut into pellets. The copper pellets are directed away from the insulation (copper is heavier, plastic is lighter) by an airflow gravity sorting system. The copper pellets are fed into separate boxes. The airflow sorting produces a 99.9% purity copper.
The entire process is relatively quiet because we partially soundproof the components.
The self-cleaning dust collection system reduces maintenance time and eliminates dust.
