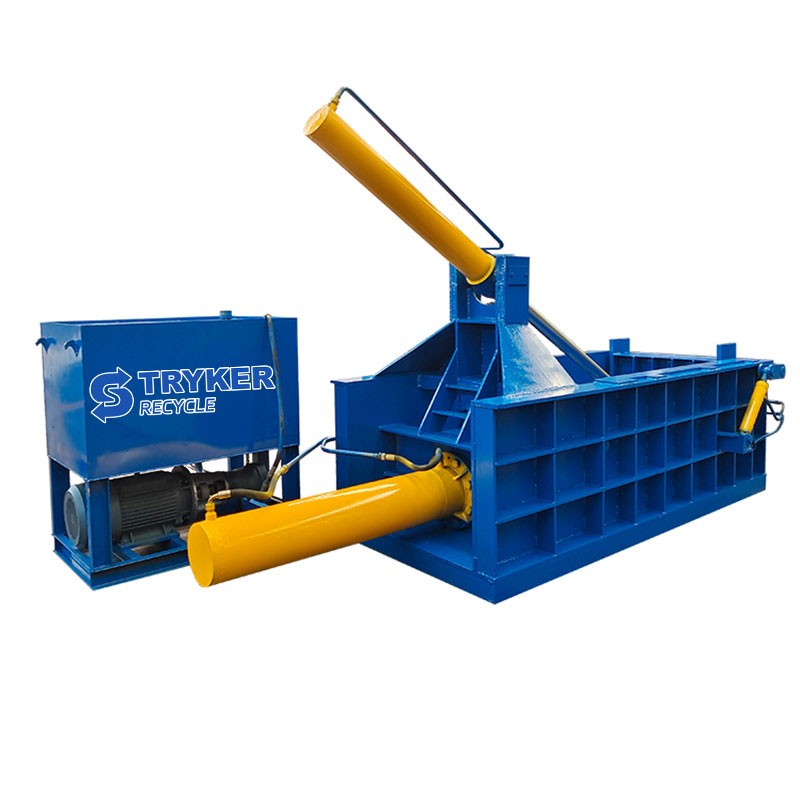

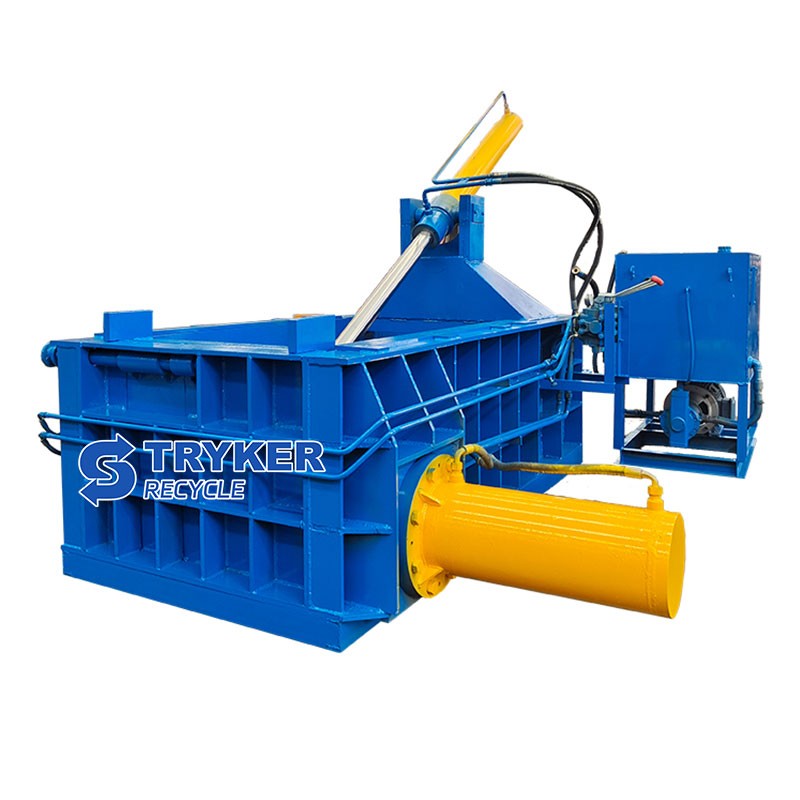

ST-B130 Horizontal metal baler

Horizontal metal baler is an automated compression packaging equipment designed for metal products (such as steel plates, aluminum profiles, stainless steel, metal scraps, etc.). Its core function is to compact loose or scattered metal materials into regular shaped bales through a high-pressure hydraulic system for easy transportation, storage and subsequent processing. This equipment is widely used in metallurgy, machinery manufacturing, resource recycling, logistics and transportation, and other fields. It is a key equipment to improve the efficiency of metal material processing and reduce storage costs.

Core structure

1. Main frame

Welded with high-strength steel plates to ensure equipment stability and pressure resistance.

Horizontal design (horizontal compression direction), relatively small footprint.

2. Hydraulic system

The core power source, including hydraulic pumps, cylinders, valves, etc., provides high pressure (usually 10-30MPa) to drive the pressure head to compress the metal.

3. Compression chamber

The loading area for metal scraps, equipped with adjustable box size to meet different material volume requirements.

4. Pressure head and mold

The pressure head moves horizontally under hydraulic pressure to squeeze the metal into shape; the mold determines the shape of the compression block (cube, cuboid, etc.).

5. Control system

Advantages

1. Efficient compression: metal density is increased by 3-10 times, and the volume is greatly reduced.

2. Energy saving and environmental protection: reduce transportation energy consumption, reduce carbon emissions, and promote the recycling of scrap metal.

3. Automated operation: reduce manpower requirements and improve work efficiency.

4. Strong durability: key components are made of wear-resistant alloys with a service life of more than 10 years.

Services
1. OEM and ODM customization available
2. Controllable delivery time
3. Ensured stable quality
4. Regular technical updates
5. Technical training sessions for operators
6. 24/7 customer service availability

After-sales Support
1. Provision of test videos before delivery
2. Video-guided installation
3. Free replacement parts
4. One-year warranty
5. Lifetime technical support
