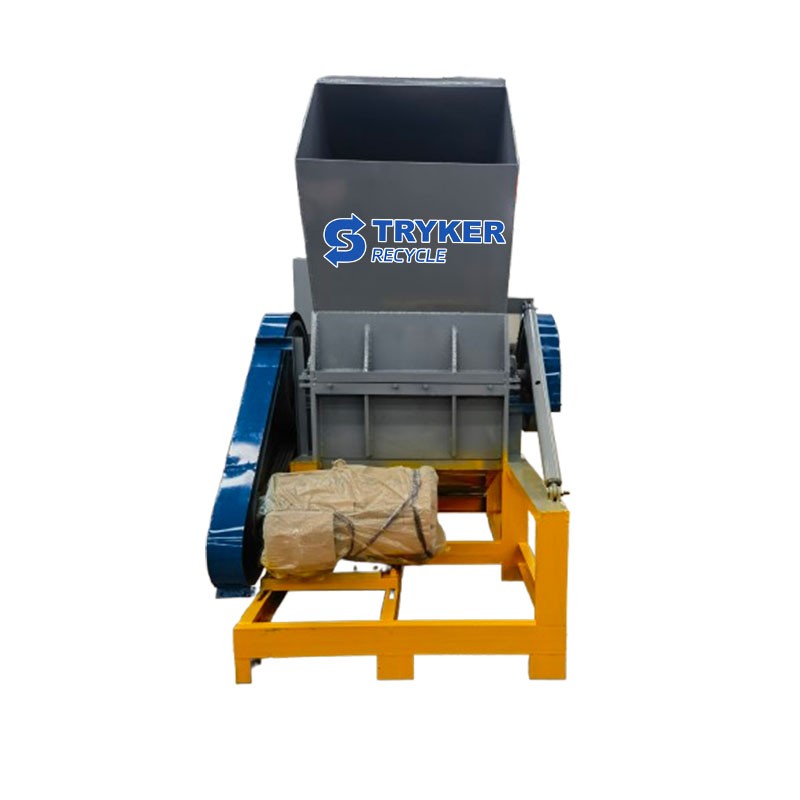

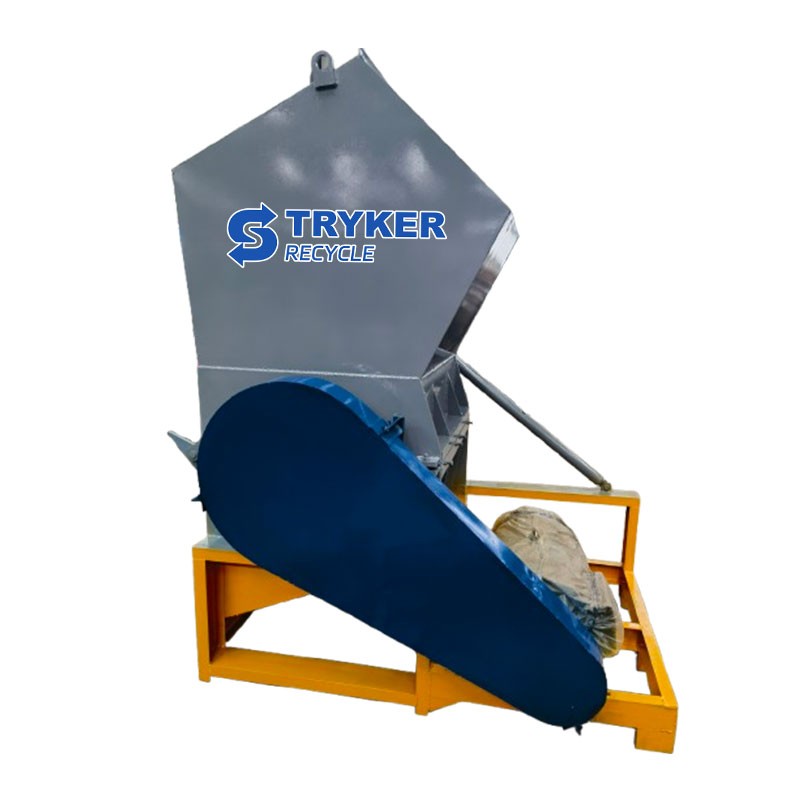

ST-B800 Plastic Crusher

Large-mouth plastic crusher is a pulverizing device designed for processing large-volume and large-size plastic products or waste materials. It is suitable for recycling large plastic parts, pipes, plates, pallets, etc. Its core features are large feed port size, strong pulverizing capacity, and high processing efficiency. It is widely used in industrial waste treatment, plastic recycling and other fields.

Core structure

1. Feed port: usually designed with a small diameter to ensure uniform material entry.

2. Crushing chamber: a knife disc composed of a built-in moving knife and a fixed knife, which achieves crushing through high-speed shearing.

3. Screen: controls the particle size of the discharge material, and screens with different apertures can adjust the particle size.

4. Motor and transmission system: provides power to drive the blade to rotate at high speed.

5. Discharge port and collection device: collects the crushed plastic particles.

Advantages

1. High efficiency and energy saving: Designed for small-caliber plastics, it has high crushing efficiency and low energy consumption.

2. Low noise design: Some models are equipped with noise reduction structure, suitable for workshop environment.

3. Safety protection: Equipped with emergency brake, overload protection, anti-rebound device, etc.

4. Flexible adaptation: Different blades and screens can be replaced to adapt to a variety of plastic materials (such as PP, PE, ABS, PVC, etc.).

5. Environmental protection: Promote plastic recycling and reduce waste pollution.
