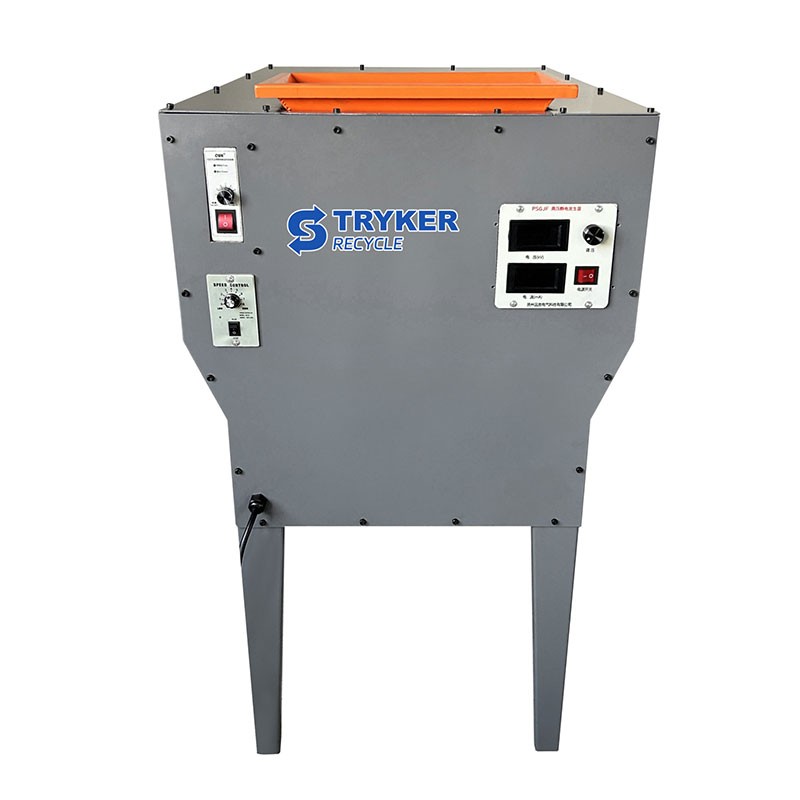

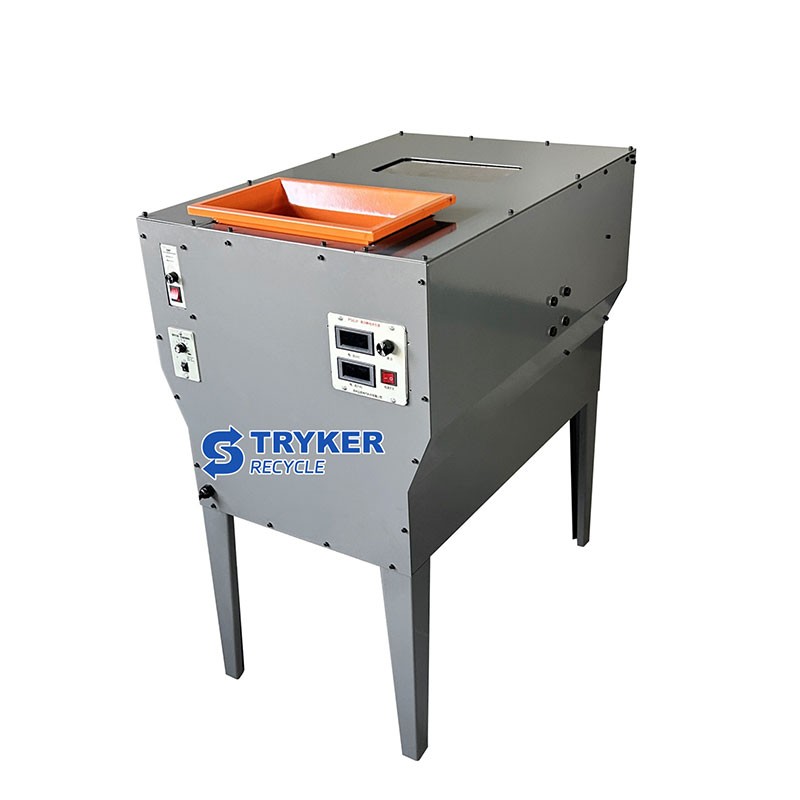

Q150S Magnetic Separator

Magnetic separation is a technology that achieves separation based on the magnetic difference of materials. It uses the difference in adsorption force of magnetic materials (such as iron and magnetite) and non-magnetic materials (such as plastics and rocks) to separate them. It is widely used in mining sorting, resource recovery, industrial waste treatment and other fields, and is one of the core processes for metal recovery and mineral purification. In the metal recycling industry, it is mainly used to remove iron from the mixture.

Advantages

1. High efficiency sorting

Processing capacity can reach 1-100 tons/hour, and the recovery rate of magnetic metals is >98%.

2. Low energy consumption and environmental protection

No chemical pollution, low energy consumption (about 0.5-5 kWh/ton for dry magnetic separation).

3. Strong adaptability

Can process materials with a particle size of 0.1-50 mm, and the sorting objects include strong magnetic (iron, magnetite) and weak magnetic (hematite, manganese ore) materials.

4. Easy maintenance

Permanent magnet models do not require power supply, and the structure is simple and durable; electromagnetic models can optimize the sorting effect by adjusting the current
